Automotive Shielded SMD Power Inductors TG-S07 With Low Profile Magnetic Core

Name: Automotive Shielded SMD Power Inductors TGS07 With Low Profile Magnetic Core
Brand: Tiger
Price: 1 USD

Brand Name : Tiger

Model Number : TG-S07

Certification : ISO, CE,UL, RoHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs/day

Delivery Time : around 20 days

Packaging Details : Carton/Pallet

DCR : 0.028Ω Max

Irms : 3.4AMax

Inductance : 1.0uh

Isat : 4.10AMax

Shape : Square

Test Condition : 100KHz/1V

name : Min Chip Inductor

Contact Now

Automotive SMD Inductor with Low-profile Magnetic Core Min Chip Inductor Custom Made Design TG-S07

Features:

Lowest height: 9.5mm maximum
With shielded/molded construction
High current: up to 65A
Lowest DCR/H, in series size
Handles high transient current spikes without saturation
Ultra low buzz noise, due to composite construction
Frequency: up to 5MHz
The products contain no lead and also supports lead-free soldering

Specifaction :

Material List

Current Characteristic

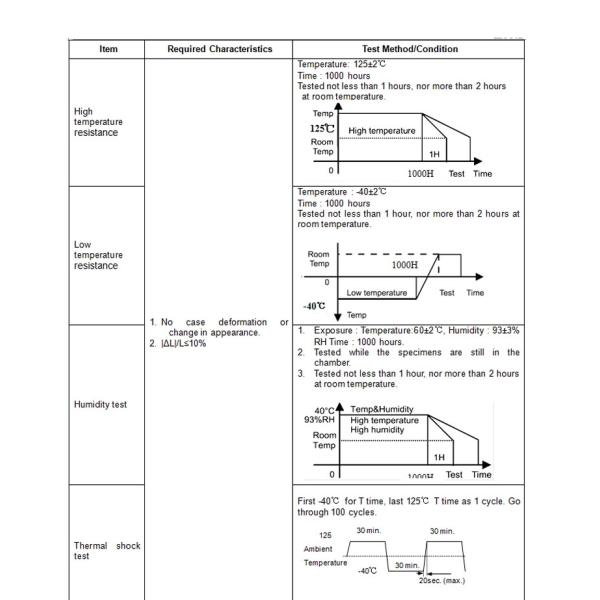

Electrical Characteristic

Application:

TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.

Packing:

FAQ

1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 10 days. Formal order needs around 20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.

6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
