TT1101120 Toroidal Power Transformer With Secure Electrical Insulation

ANHUI TIGER CO,.LTD
Contact Now

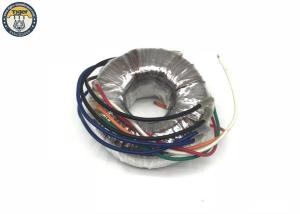

TT1101120 Toroidal Power Transformer With Secure Electrical Insulation

  • 1
  • 2
  • 3

Brand Name : Tiger

Model Number : TT1101120

Certification : UL,ISO,CE,ROSH,CCC

Place of Origin : China

MOQ : 1000

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 20000PCS/Per Day

Delivery Time : 15-25days

Packaging Details : Cartons/ Pallets

Shipping Term : FOB ShangHai/TianJin

Application : Switching Power Supply, LED, Driver...

ODM OEM : Accepted

Shipping : By air or by sea

Insulation : Class B

Name : Toroidal Transformer

Contact Now

Toroidal Transformer with secure electrical insulation TT1101120

TT1101120

P1: RED-WHI 115V

P2: ORG-GRN 115V

S1: BLU-BLU 12V

S2: BLK-BLK 12V

TT1101120 Toroidal Power Transformer With Secure Electrical Insulation

FEATURE&APPLICATION:
Low Magnetic Noise
High efficiency
Excellent Load Regulation
Easy Assembely
Very Low No-load losses and magnetizing Current
Half Size and weight Comparing to EI Transformer
Various Input options
100V/110V/117V/120V/220V/230V/240V,50/60Hz
Dielectric Strength 3KV,1min
100% Electric parameters Test
Power Range 20VA-5000VA Available According to
customer's requirement
Class B insulation System
Optional Single or Dual Primary

According to:

TT1101120 Toroidal Power Transformer With Secure Electrical InsulationTT1101120 Toroidal Power Transformer With Secure Electrical InsulationTT1101120 Toroidal Power Transformer With Secure Electrical InsulationTT1101120 Toroidal Power Transformer With Secure Electrical InsulationTT1101120 Toroidal Power Transformer With Secure Electrical Insulation

Series Feature
EE bobbin Applied in the switching power supply,main power transformer
EF bobbin Applied in the switching power supply,main power transformer
EFD bobbin Auxiliary powr transformer,main power transformer,choke coils
EPC Bobbin Auxiliary powr transformer,main power transformer
PQ Bobbin Applied in the linear filter,choke,pulse transformer,drive transformer
UU Bobbin Varieties of switching power supply transformer,coke coils et
EC/EER/ER Bobbin Applied in the linear filter ,current tranformer,smoothing choke coil,drive transformer, switching power transformers and chokes
RM Bobbin Filters, inductors and transformers for telecommunication other electronic equipment
POT Bobbin Filters for telecommunication equipment,and various kinds of inductors and transformers
DR Core Choke coils, Peaking coils, Linearity coils, Alarm coils, Power choke coils, Fixed choke coils, Filtering coils,etc;
EI Bobbin Various kinds of transformers and chokes.

Application:
TT1101120 Toroidal Power Transformer With Secure Electrical Insulation

TIGER is a leading designer and manufacturer of magnetic components. We offer an extensive products line, composed of standard and custom transformers, inductors and related components to meet all of your magnetic needs. Our in-house engineering team is ready to provide you with local technical support, as well as design custom products based on your specifications. We are able to support both low volume, quick turnaround production, as high volume, low cost production.

With facilities in China, TIGER can provide sales and manufacturing support on a global level.Customers can take advantage of our overseas production and shipping capabilities for greater flexibility and convenience.

TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to:
· Automotive
· Consumer Electronics
· Industrial
· Medical
· Military & Aerospace
· Telecommunications
We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.

TIGER has a renowned reputation for providing high quality custom magnetic components at competitive price. Operating from our ISO certified facilities in China, every product we deliver meets or exceeds our customers’ expectations and complies with all customer’s requirements.

We offer a wide range of products, all of which can be custom designed to meet your specific requirements. Our basic product line includes:

·Inductors

·High Frequency Transformers

·Video & Audio Isolation Transformers

·RF& Balun Transformers

·Current Sense Transformers

·Lamination Power Transformers

·Broadband Transformers

·Encapsulated Transformers

·Toroidal Transformers

·EMI-filter

·Common Mode Chokes

·Telecom Magnetics

·Other Magnetics

Packing:
TT1101120 Toroidal Power Transformer With Secure Electrical Insulation
FAQ
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Sample order needs 7 days. Formal order needs 15-20 days.
3. Q: What's your payment terms?
A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
4. Q: Do you have the prodcts in stock?
A: Yes,we will keep some general ones in stock.
5. Q: Can I mix different models in one container?
A: Yes,different models can be mixed up.
6. Q: Do you customize for customer or accept OEM Orders ?
A: Yes,we provide designing and customizing services. OEM orders are also accepted.
TT1101120 Toroidal Power Transformer With Secure Electrical Insulation
